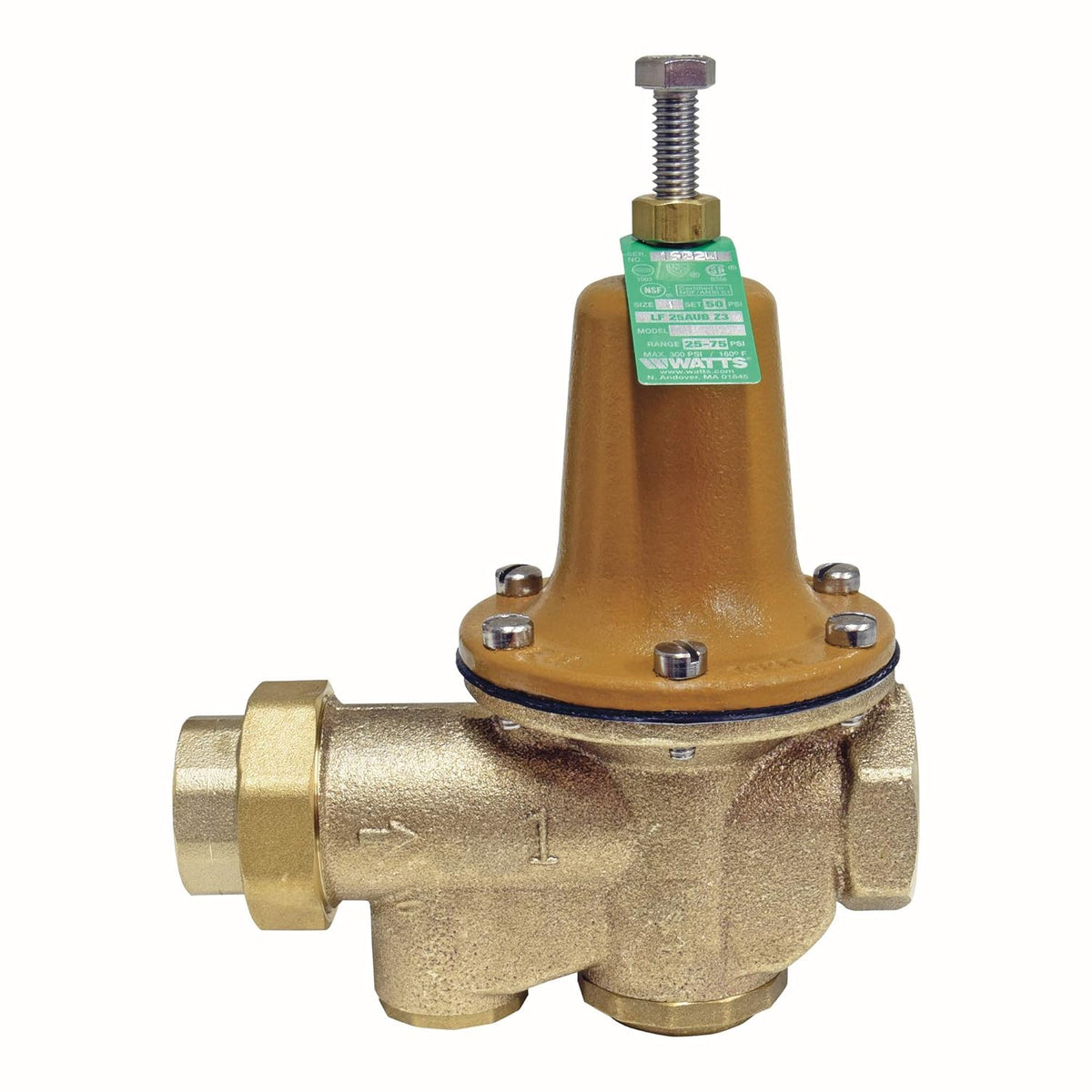

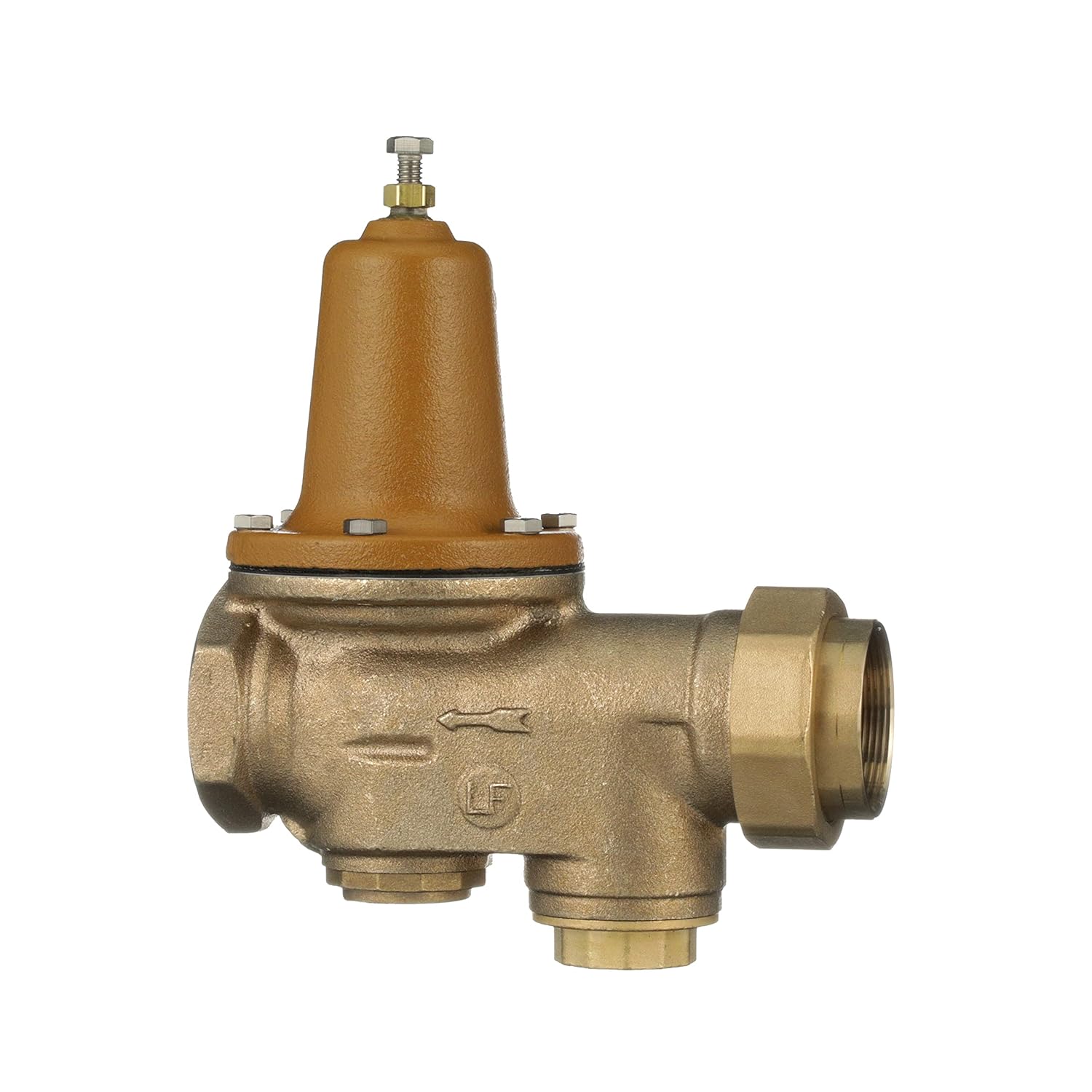

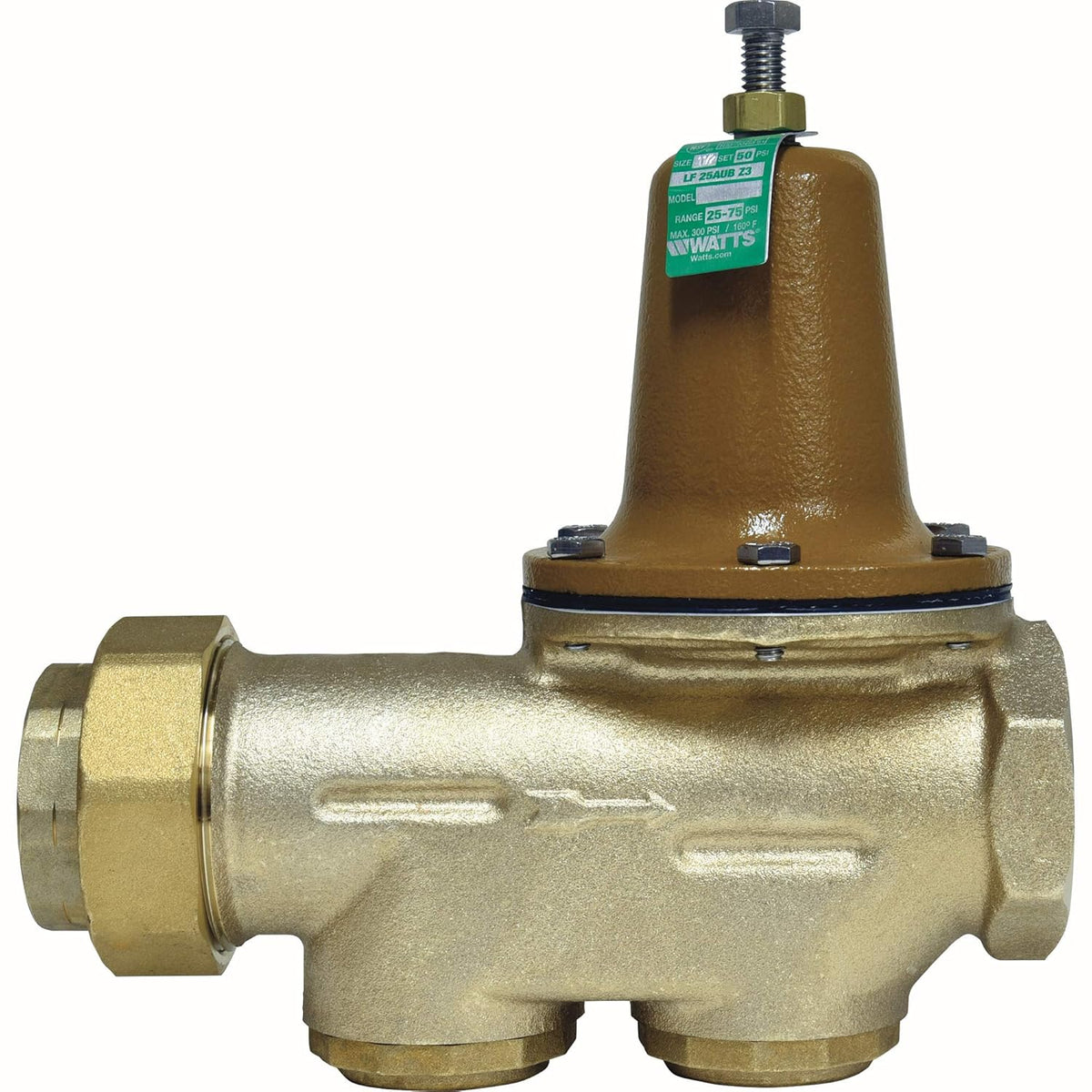

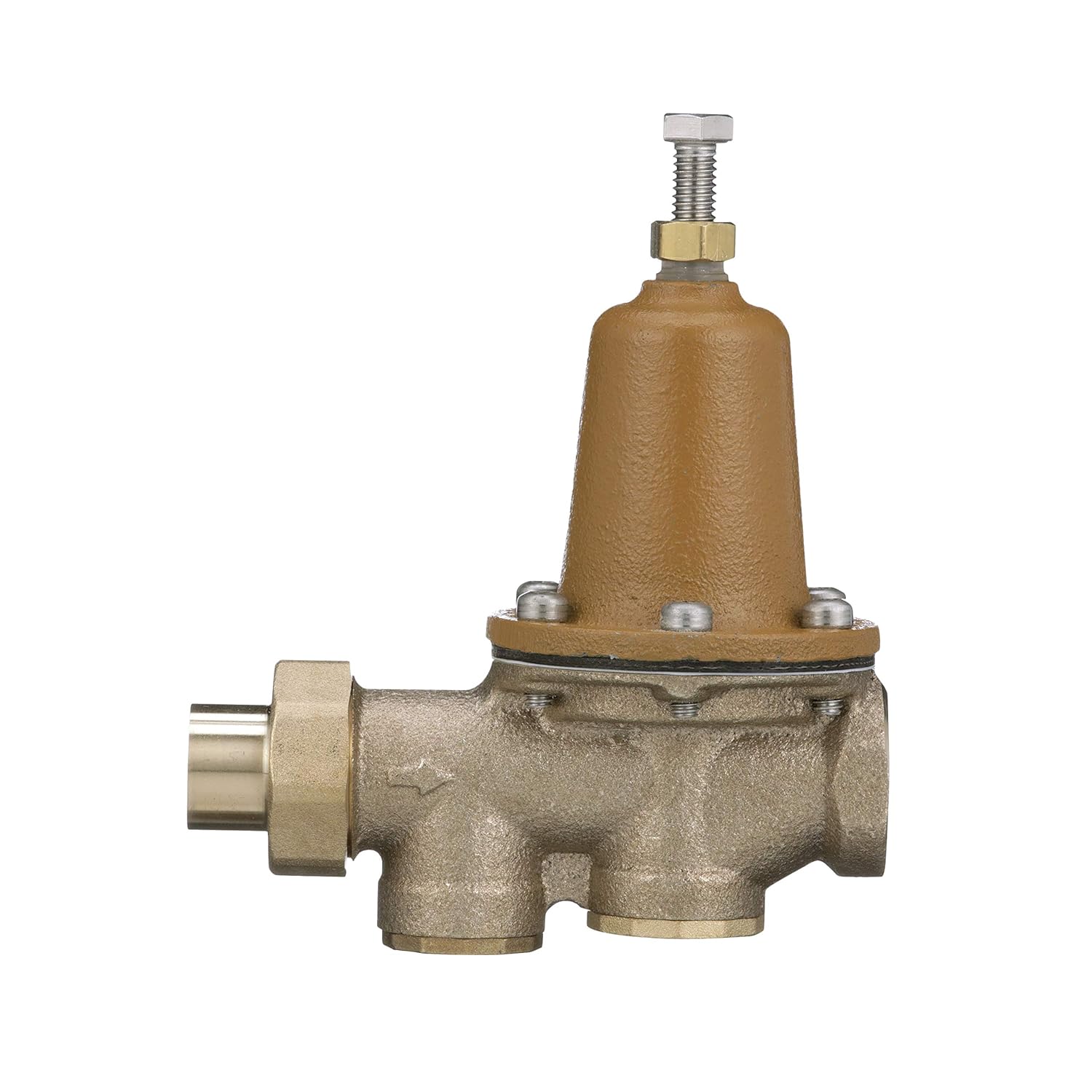

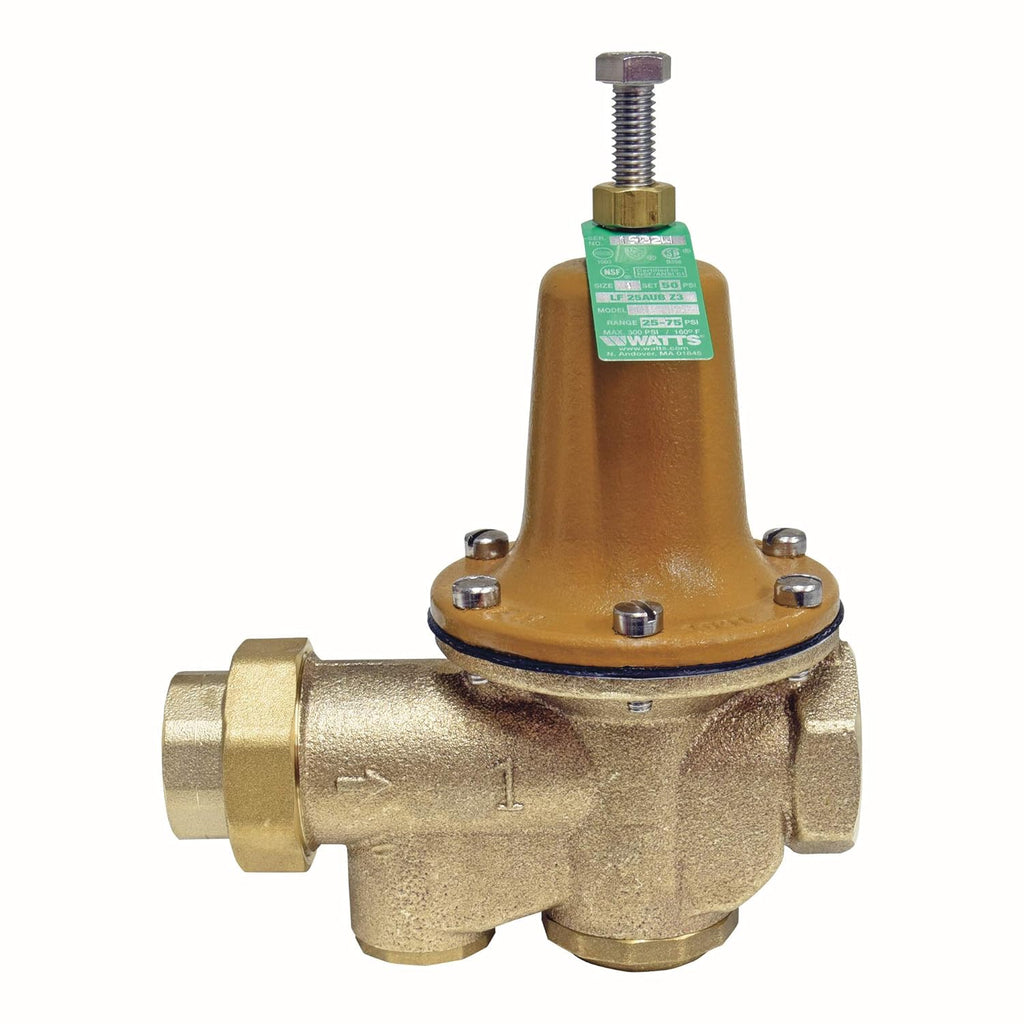

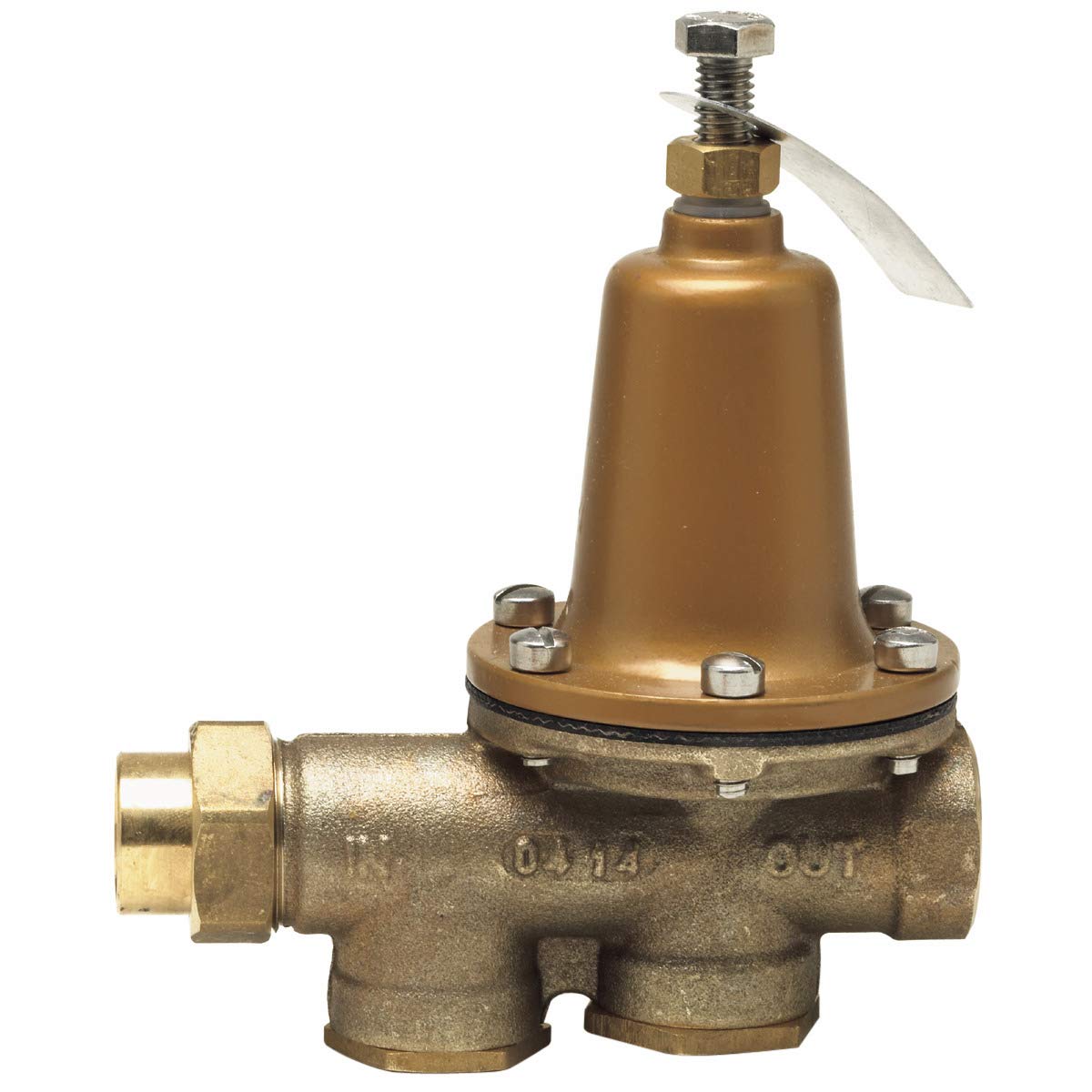

2 Inch Water Pressure Reducing Valve O220
Sale price
$36.99
Regular price $115.94
Skip to product information
Reduces incoming water pressure to protect plumbing systems and reduce water consumption in commercial industrial and residential applicationsWater supply pressures range is 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa)Lead free copper silicon alloy with stainless steel strainer and corrosion resistant adjusting and cage screws, high-temperature diaphragm, replaceable seat moduleEnd connection options such as PEX, CPVC, and Quick-ConnectThe standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply
2 Inch Water Pressure Reducing Valve O220
Sale price
$36.99
Regular price $115.94
Shipping calculated at checkout.
This 2 inch lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
| Watts ¾” LF25AUB Series, Lead Free, 3/4" Sweat by 3/4" FIP | Watts 3/4 LFN45BM1, Lead Free, NPT threaded union inlet x NPT female outlet | Watts 3” LFN223M1-B, Lead Free, NPT threaded female inlet x NPT female outlet | Watts 2” LFU5B-Z3, Lead Free, NPT threaded female inlet x NPT female outlet | |
|---|---|---|---|---|
| Max PSI | 300 | 400 | 300 | 300 |
| Adjustable Temp Range | 25-75 PSI | 25-75 PSI | 25-75 PSI | 25-75 PSI |
| Max Working Temperature | 160 | 180 | 160 | 160 |
| Outlet Connection Type | Female Threaded | Female Threaded | Female Threaded | Female Threaded |
| Inlet Connection Type | Sweat | Female Threaded | Female Threaded | Female Threaded |
| Lead Free | ✓ | ✓ | ✓ | ✓ |
